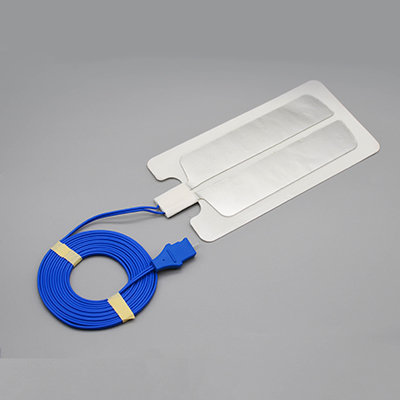

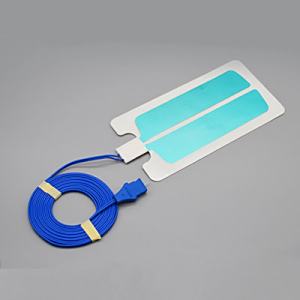

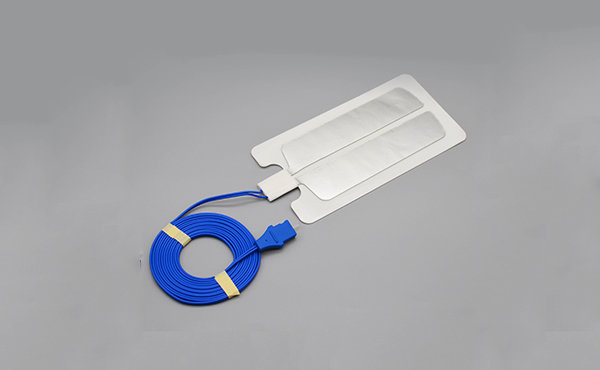

Disposable Neutral Electrode/ Electrosurgical Grounding Pad
The Disposable Neutral Electrode/ Electrosurgical Grounding Pad is a disposable, single use, neutral electrode, which provides a return path for high frequency electrical current to the electrosurgical generator. No electrosurgical effect, e.g., cutting and removal of tissue or coagulation, is intended at this electrode.
Technical Parameters
| No. | Item | Descripiton |
| 1 | REF NUMBER | GP202S-AC(REM) (Aduit USE, BIPOLAR) |
| 2 | Main Materials | GEL, Aluminum Foil, Foam/ Non-woven Fabrics, Liner, PE Insulating Piece |
| 3 | Dimensions | Gel size: 165*37 mm*2 Foam size: 204*106 mm |
| 4 | Expiration | 24 Months |
| 5 | Connection | Tab connection or preattached with cable |
| 6 | Impendance ( 200 KHz) | <50.0 Ohms |
| 7 | Max Tempreture Rise: | 4.0 C° at 700 mA |
| 8 | Sickness | > 10 N |
| 9 | Classification | Directive 93/42/EEC (D.L. 46/97). Class IIb device |
| 10 | Safe Standards | ANSI IEC60601-2-2; AAMI-HF18:2001 |
| 11 | Storage | Tempreture: -5°C -40° C, Relative Humidity: 5% - 90% |
